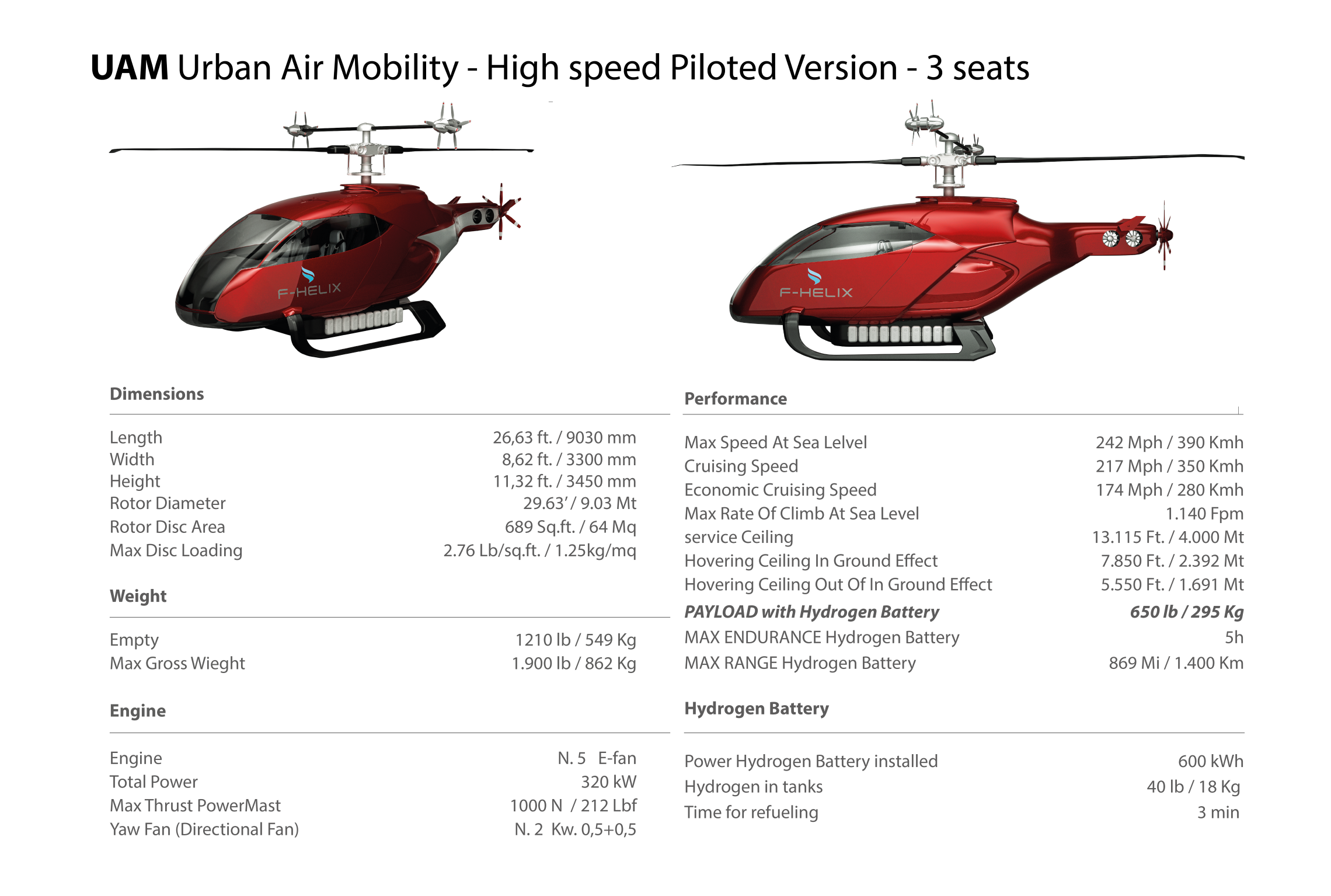

Technical Data:
Dimensions
Dimensions
|
Length
|
26,63 ft. / 9030 mm
|
| Width |
8,62 ft. / 3300 mm
|
| Height |
11,32 ft. / 3450 mm
|
|
Rotor Diameter
|
29.63’ / 9.03 Mt
|
|
Rotor Disc Area
|
689 Sq.ft. / 64 Mq
|
| Max Disc Loading |
2.76 Lb/sq.ft. / 1.25kg/mq |
Weight
| Empty |
700 lb / 320 Kg
|
|
Max Gross Weight
|
1.900 lb / 862 Kg
|
|
PAYLOAD
|
754 lb / 342 Kg
|
Engine
|
Engine
|
N.4 E-fan + N.1 E-Fan
|
|
Total Power
|
210 Kw
|
|
Max Thrust PowerMast
|
1000 N / 212 Lbf
|
|
Yaw Fan (Directional Fan)
|
N. 2 Kw. 0,5+0,5
|
Performance
| Max Speed At Sea Level |
160 Mph / 257 Kmh |
| Cruising Speed |
140 Mph / 225 Kmh |
| Economic Cruising Speed |
110 Mph / 177 Kmh |
| Max Rate Of Climb At Sea Level |
1.140 Fpm |
| Service Ceiling |
13.115 Ft. / 4.000 Mt |
| Hovering Ceiling In Ground Effect |
7.850 Ft. / 2.392 Mt |
| Hovering Ceiling Out Of In Ground Effect |
5.550 Ft. / 1.691 Mt |
| Max Endurance |
3 h 30 min |
| Max Range |
305 Mi / 490 Km |
Battery Pack Hydrogen Fuel Cell
| Total power |
255 Kwh |
| Time for recharging |
5 / 7 min |
