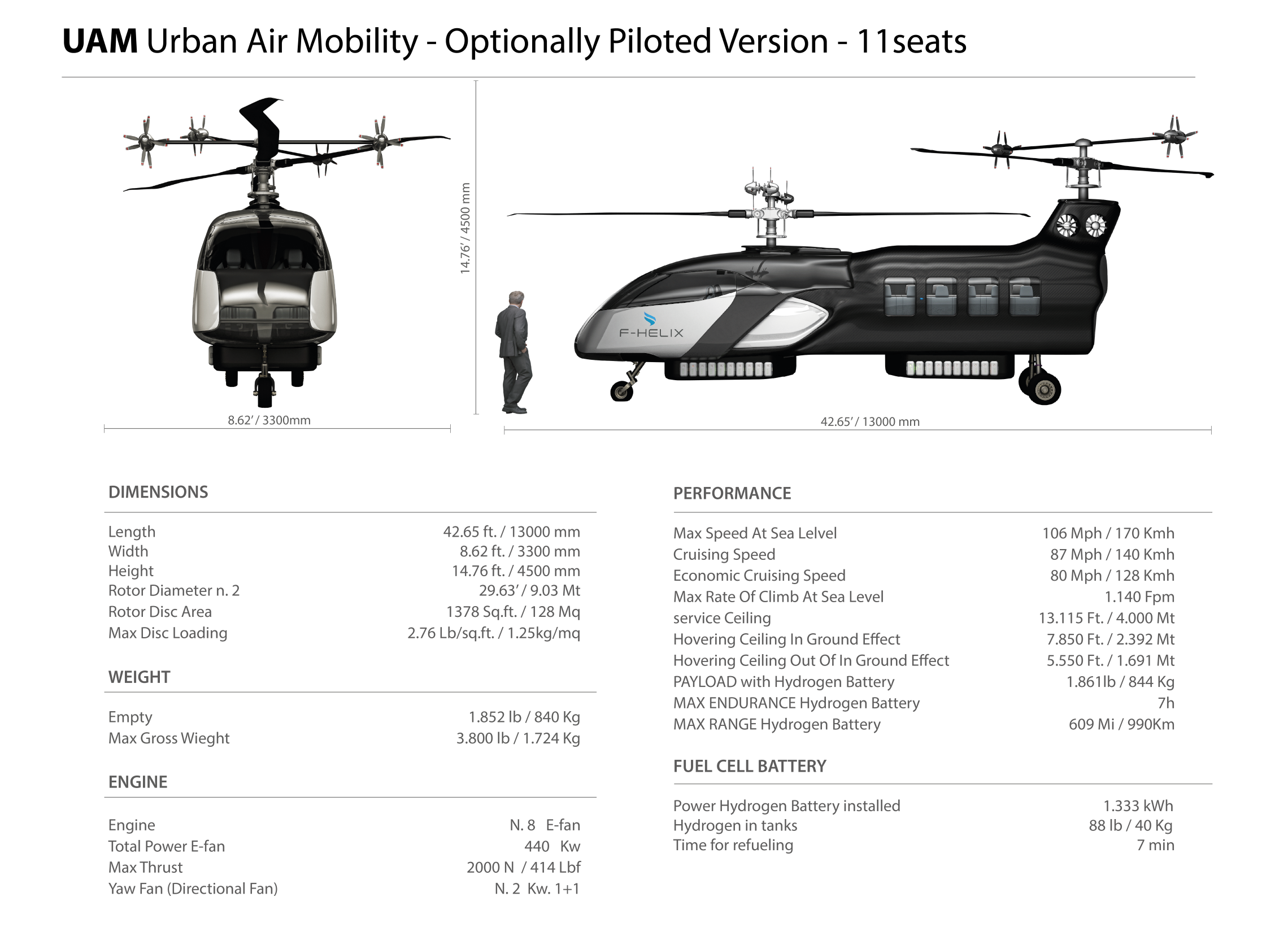

Technical Data:
Dimensions
|
Length
|
42,65 ft. / 13000 mm
|
| Width |
8,62 ft. / 3300 mm
|
| Height |
14,76 ft. / 4500 mm
|
|
Rotor Diameter n.2
|
29.63’ / 9.03 Mt
|
|
Rotor Disc Total Area
|
1378 Sq.ft. / 128 Mq
|
| Max Disc Loading |
2.76 Lb/sq.ft. / 1.25kg/mq |
Weight
| Empty |
1212 lb / 550 Kg
|
|
Max Gross Weight
|
3800 lb / 1724 Kg
|
|
PAYLOAD
|
1574 lb / 714 Kg
|
Engine
|
Engine
|
N. 8 E-fan
|
|
Total Power
|
300 Kw
|
|
Max Thrust PowerMast
|
2000 N / 414 Lbf
|
|
Yaw Fan (Directional Fan)
|
N. 2 Kw. 1+1
|
Performance
| Max Speed At Sea Level |
106 Mph / 170 Kmh |
| Cruising Speed |
87 Mph / 140 Kmh |
| Economic Cruising Speed |
80 Mph / 128 Kmh |
| Max Rate Of Climb At Sea Level |
1.140 Fpm |
| Service Ceiling |
13.115 Ft. / 4.000 Mt |
| Hovering Ceiling In Ground Effect |
7.850 Ft. / 2.392 Mt |
| Hovering Ceiling Out Of In Ground Effect |
5.550 Ft. / 1.691 Mt |
| Max Endurance |
3 h 10 min |
| Max Range |
275 Mi / 443 Km |
Battery Pack Hydrogen Fuel Cell
| Total power |
500 Kwh |
| Time for recharging |
5 / 7 min |
